HR 9487

type CH · family 273 · 3 windings · 210 g

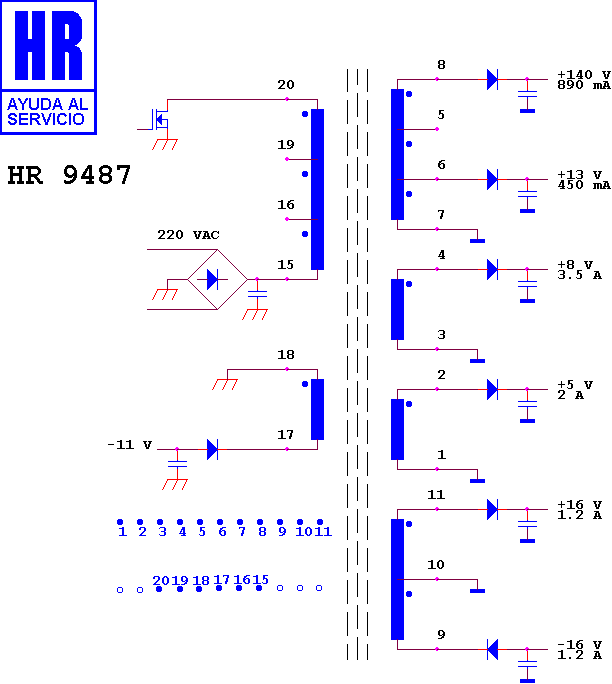

Schematic diagram for HR 9487
schematic

Manufacturer equivalents (2)

RTRNZ0552BMZZ · Z 0552 BM

Fitted to (11)

SHARP 70 DW 15 · SHARP 70 DW 15 FP · SHARP 70 DW 15 SN · SHARP 70 DW 153 N · SHARP 70 DW 155 N · SHARP 70 DW 18 SN · SHARP 70 DW 185 N · SHARP 81 DW 15 S · SHARP 81 DW 15 SN · SHARP 81 DW 18 FP · SHARP CHASIS CW 100
