HR 9485

type CH · family 274 · 4 windings · 128 g

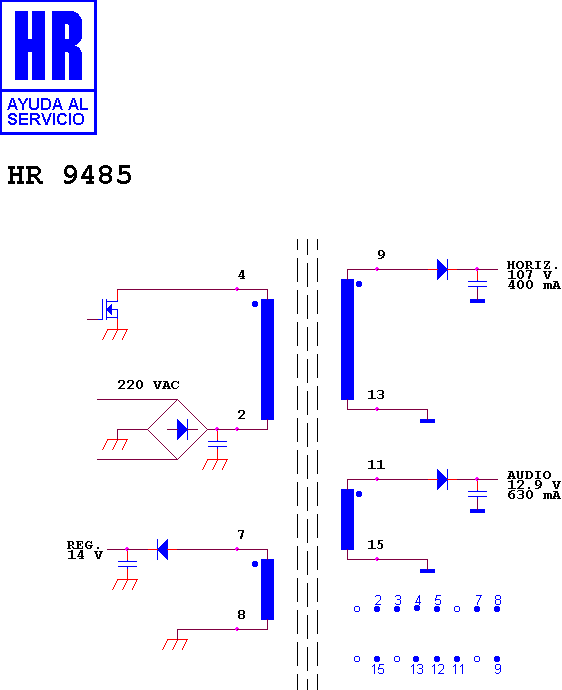

Schematic diagram for HR 9485
schematic

Manufacturer equivalents (1)

TSM 5

Fitted to (11)

MIVAR 14 M 3 · MIVAR 14 M 4 · MIVAR 14 P 1 · MIVAR 16 M 1 · MIVAR 16 M 2 · MIVAR 16 P 1 · MIVAR 20 M 1 · MIVAR 20 M 2 · MIVAR 20 P 1 · MIVAR 21 S 2 · MIVAR 21 S 3
