HR 9484

type CH · family 271 · 5 windings · 172 g

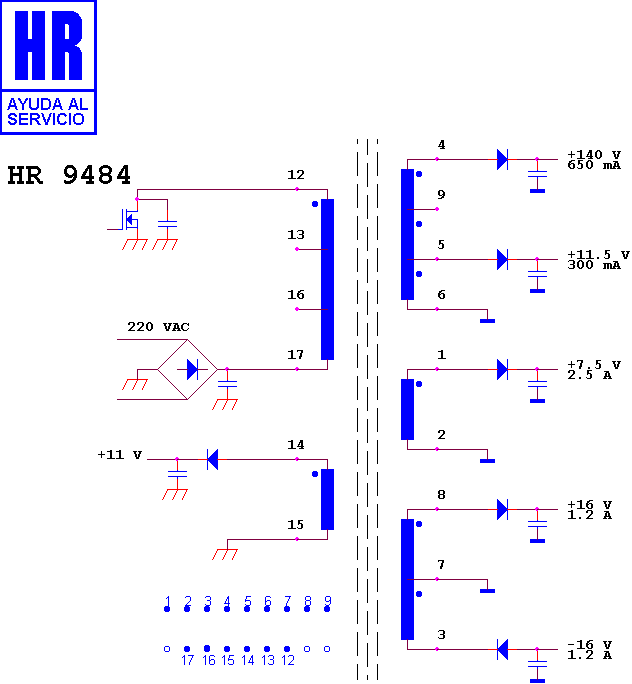

Schematic diagram for HR 9484
schematic

Manufacturer equivalents (2)

RTRNZ0557BMZZ · Z 0557 BM

Fitted to (3)

SHARP 72 CS 18 FP · SHARP 72 DS 18 S · SHARP CHASIS CA 100

Search this part in the full database
