HR 9480

type CH · family 271 · 5 windings · 177 g

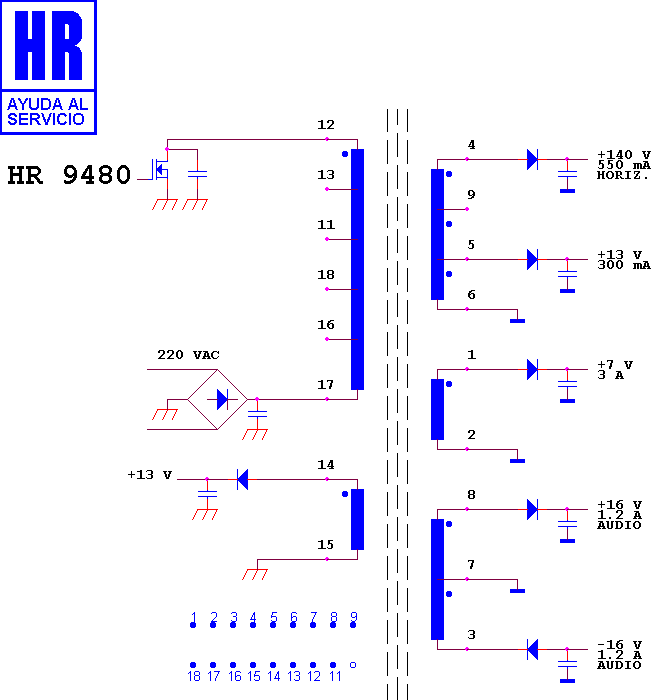

Schematic diagram for HR 9480
schematic

Manufacturer equivalents (3)

NZ 0550 BM · RTRNZ0550BMZZ · Z 0550 BM

Fitted to (7)

SHARP 63 DS 15 S · SHARP 70 DS 18 S · SHARP 70 ES 14 S · SHARP 70 ES 16 S · SHARP 70 ES 18 S · SHARP CHASIS CA 100 · SHARP CHASIS DA 100
