HR 9471

type CH · family 271 · 3 windings · 180 g

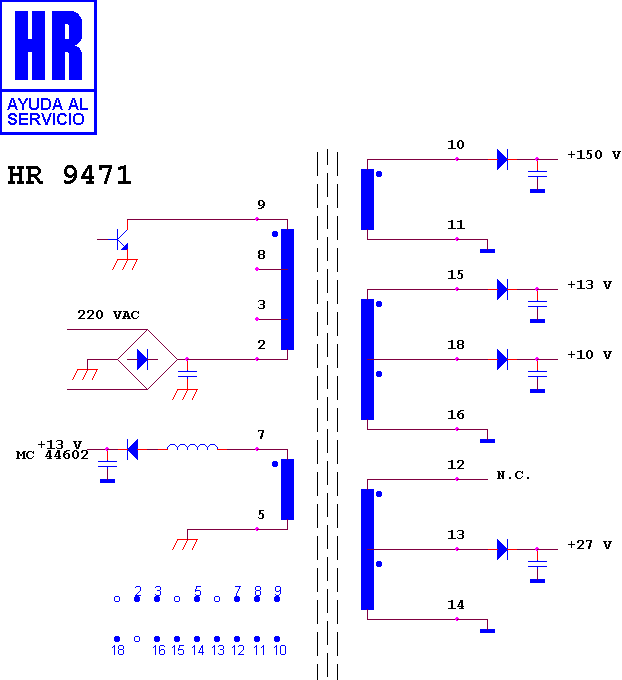

Schematic diagram for HR 9471 — schematic

Manufacturer equivalents (3)

NZ 0540 BM · RTRNZ0540BMZZ · Z 0540 BM

Search this part in the full database
