HR 9470

type CH · family 290 · 4 windings · 245 g

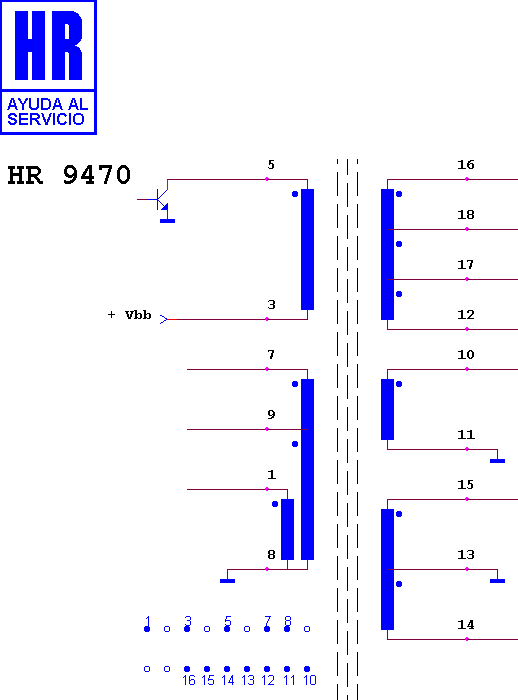

Schematic diagram for HR 9470
schematic

Manufacturer equivalents (2)

2092.1252 · 62.2111.000

Fitted to (5)

ALBA CTV 250 · SHARP DV 5105 H · SHARP DV 5107 H · SHARP DV 5403 · SHARP DV 5431
