HR 9469

type CH · family 271 · 4 windings · 174 g

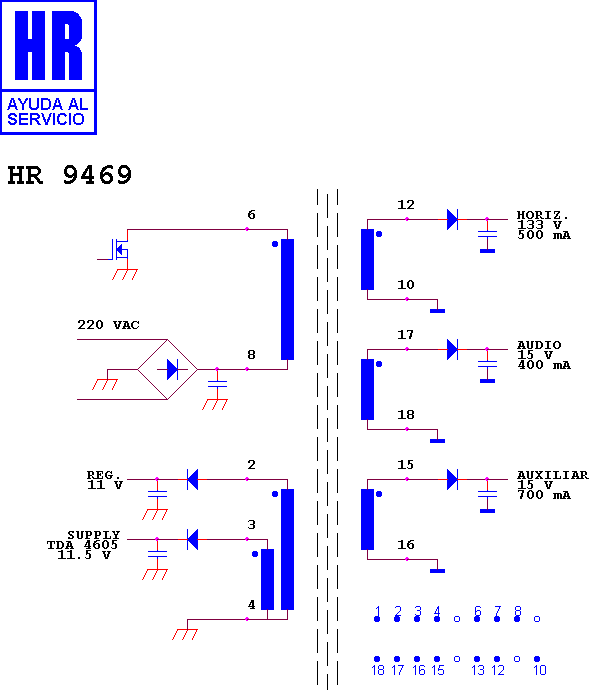

Schematic diagram for HR 9469
schematic

Manufacturer equivalents (5)

093-01061/0.9 · 093-01061/1.7 · 2092.3281 · 93-01061/0.9 · 93-01061/1.7

Fitted to (2)

SANYO C 2170 TX · SANYO CHASIS EC 1 LC 21" TUB. TOSHIB
