HR 9466

type CH · family 290 · 4 windings · 242 g

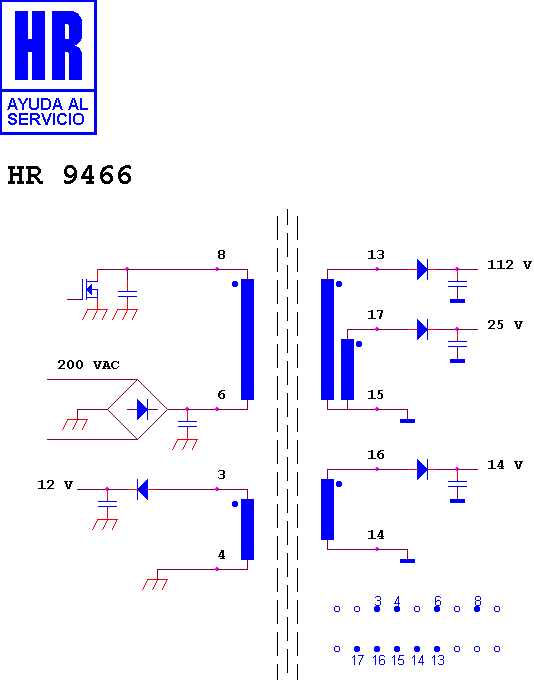

Schematic diagram for HR 9466 — schematic

Manufacturer equivalents (2)

93906.00 · 93906.01

Search this part in the full database
