HR 9465

type CH · family 271 · 4 windings · 174 g

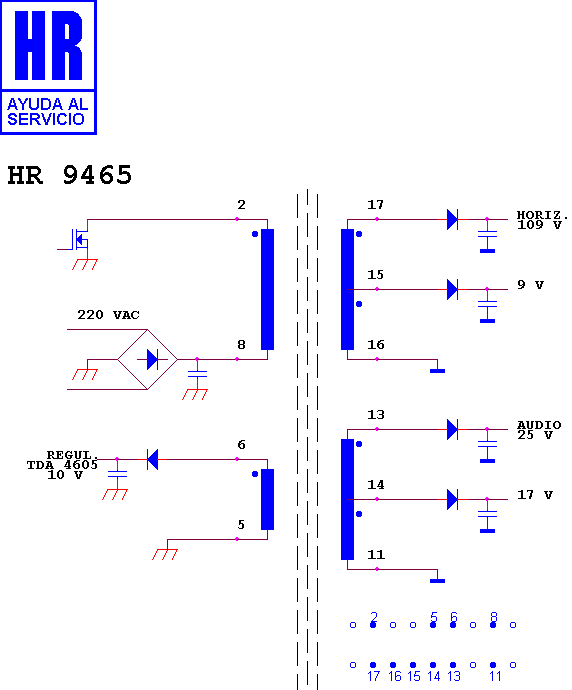

Schematic diagram for HR 9465 — schematic

Manufacturer equivalents (2)

2092.3131 · 28030130

Search this part in the full database
