HR 9461

type CH · family 271 · 3 windings · 180 g

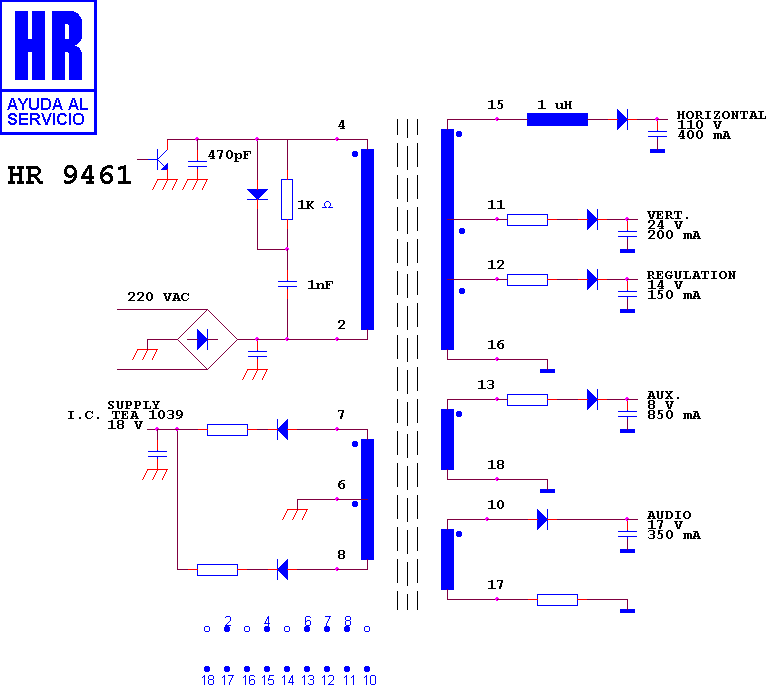

Schematic diagram for HR 9461 — schematic

Manufacturer equivalents (2)

RTRNZ0530BMZZ · Z 0530 BM

Search this part in the full database
