HR 9459

type CH · family 290 · 4 windings · 252 g

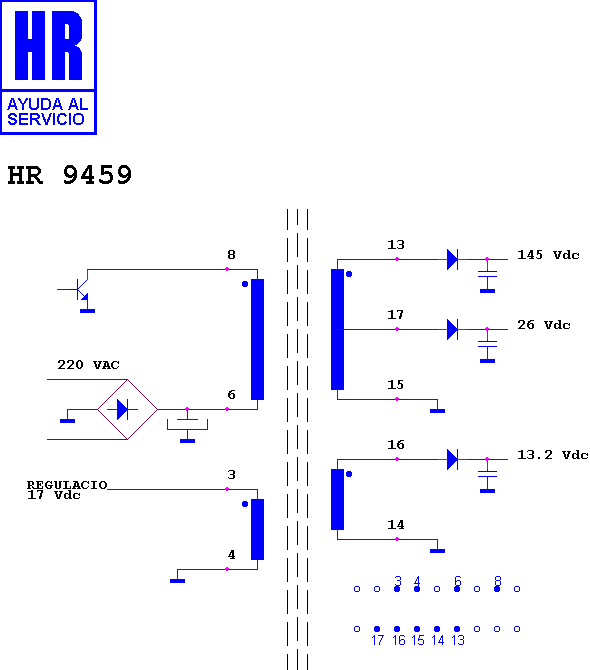

Schematic diagram for HR 9459
schematic

Manufacturer equivalents (5)

90901.00 · 93901.00 · 93901.01 · 93901.02 · 93901.03

Fitted to (1)

ELBE 2593

Search this part in the full database
