HR 9457

type CH · family 271 · 4 windings · 180 g

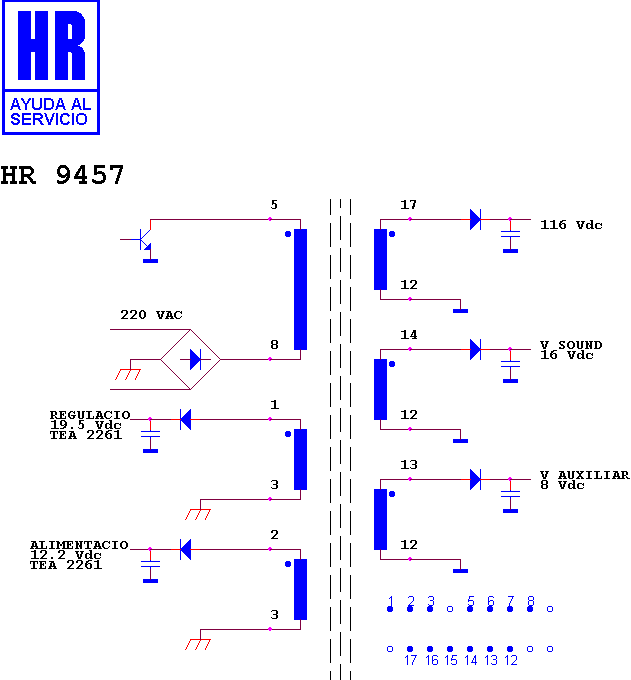

Schematic diagram for HR 9457
schematic

Manufacturer equivalents (3)

473175.31 · 473175.P1 · 473175D1.P1

Fitted to (6)

IMPERIAL 50 M 92 A · IMPERIAL FLORIDA · KAISUI 1402 · KAISUI CHASIS 3915 TH · KAISUI CHASIS 55 · KORPEL K 5148

Search this part in the full database
