HR 9451

type CH · family 271 · 3 windings · 180 g

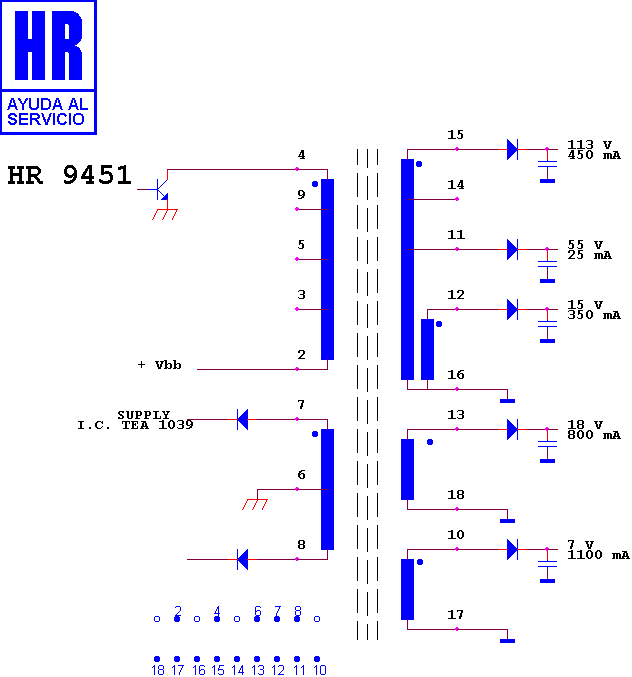

Schematic diagram for HR 9451
schematic

Manufacturer equivalents (4)

HR 9451 · RTRNZ0521BMZZ · Z 0521 B · Z 0521 BM

Fitted to (5)

SHARP CHASIS DECO 4 · SHARP DV 5105 · SHARP DV 5107 · SHARP DV 5107 H · SHARP DV 5432 SN
