HR 9446

type CH · family 276 · 5 windings · 122 g

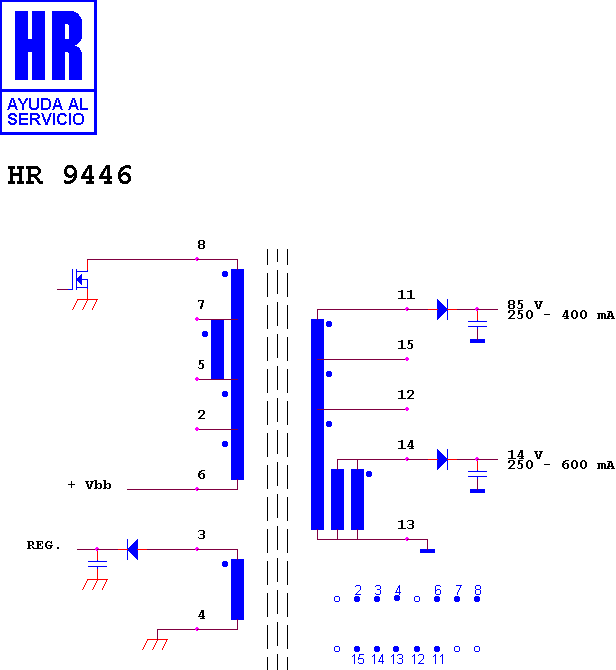

Schematic diagram for HR 9446
schematic

Manufacturer equivalents (3)

2092.2761 · 37.829 · 62.2170.000

Fitted to (4)

ELBE CHASIS E 15-14 · ELBE TVC 1420 · ELBE TVC 1426 · ELBE TVC 1426 TX

Search this part in the full database
