HR 9441

type CH · family 290 · 4 windings · 252 g

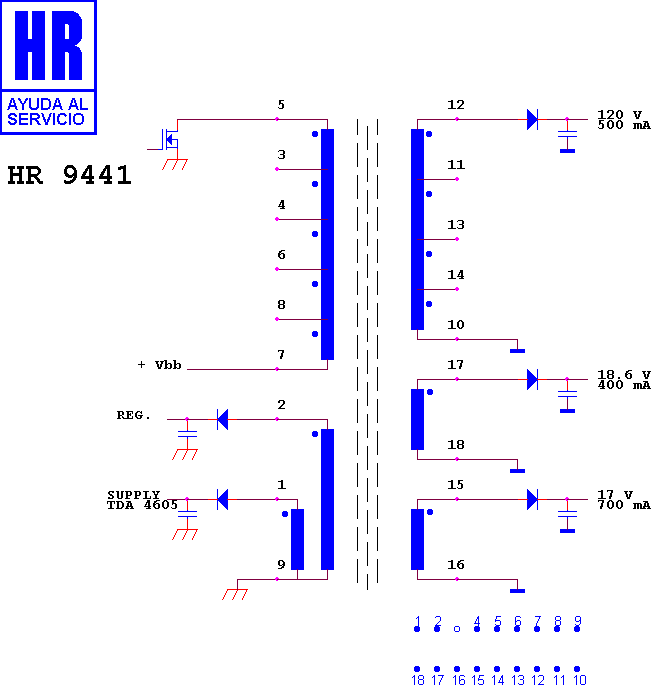

Schematic diagram for HR 9441 — schematic

Manufacturer equivalents (1)

HR 9441

Fitted to (1)

SANYO CHASIS EC 1 90§

Search this part in the full database
