HR 9438

3 windings

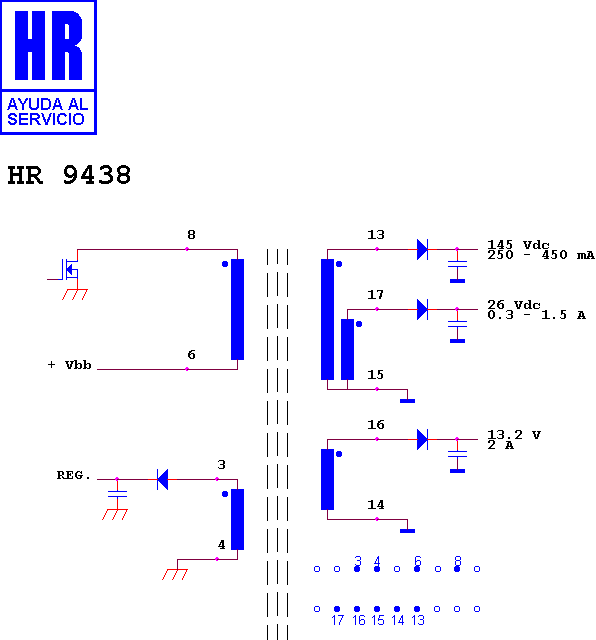

Schematic diagram for HR 9438 — schematic

Manufacturer equivalents (4)

37.823 · 93912.00 · 93912.01 · 93912.99

Fitted to (1)

ELBE CHASIS E 14

Search this part in the full database
