HR 9437

type CH · family 290 · 3 windings · 234 g

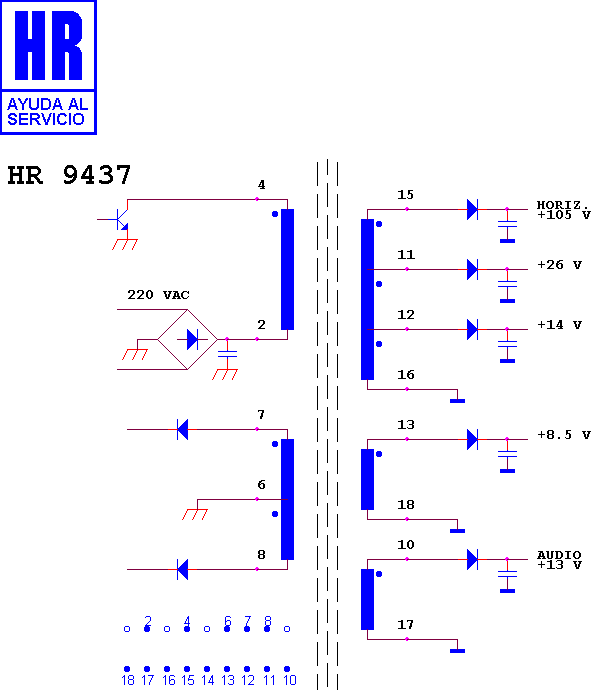

Schematic diagram for HR 9437
schematic

Manufacturer equivalents (4)

93911.00 · 93911.01 · RTRNZ0508BMZZ · Z 0508 BM

Fitted to (6)

SHARP CHASIS DECO 3 21" · SHARP DV 5101 H · SHARP DV 5103 H · SHARP DV 5401 S · SHARP DV 5401 SN · SHARP DV 5401 SN/BK
