HR 9435

type CH · family 271 · 3 windings · 180 g

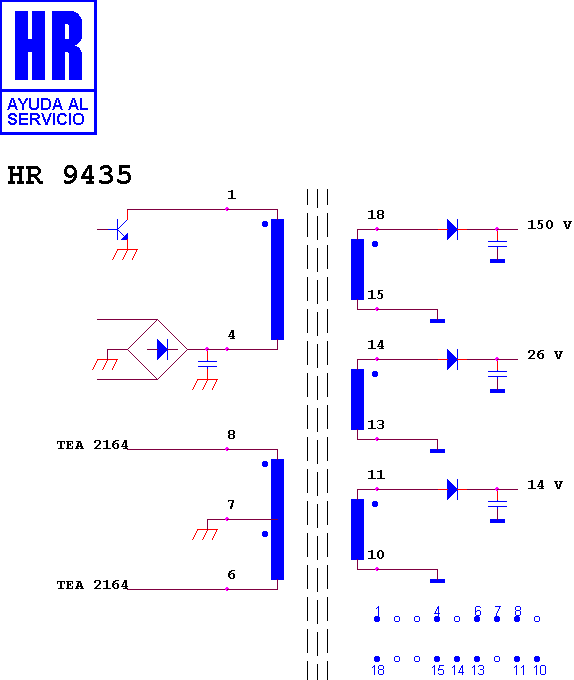

Schematic diagram for HR 9435 — schematic

Manufacturer equivalents (1)

2092.0452

Search this part in the full database
