HR 9434

type CH · family 290 · 4 windings · 234 g

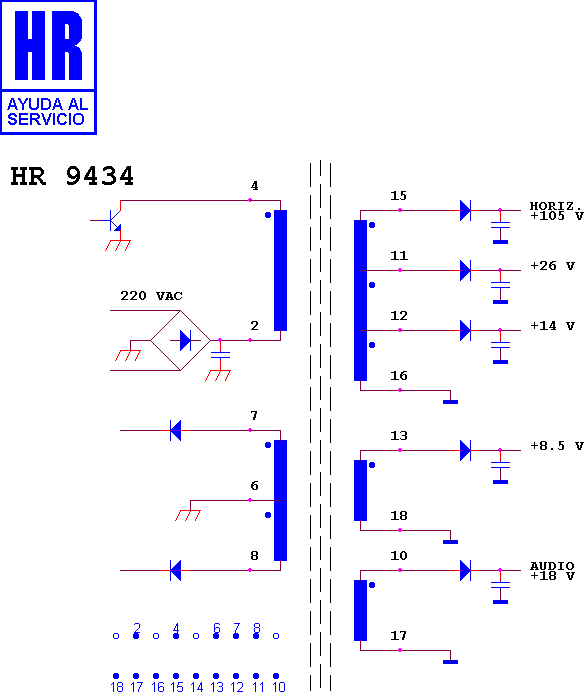

Schematic diagram for HR 9434
schematic

Manufacturer equivalents (6)

93908.00 · 93908.01 · 93908.02 · 93908.03 · RTRNZ0504BMZZ · Z 0504 BM

Fitted to (7)

SHARP CHASIS DECO 1 21" · SHARP CHASIS DECO 2 21" · SHARP DV 2010 SN · SHARP DV 2016 SN · SHARP DV 2016 SN/BK · SHARP DV 2106 SN · SHARP DV 2118 SN
