HR 9432

type CH · family 261 · 6 windings · 184 g

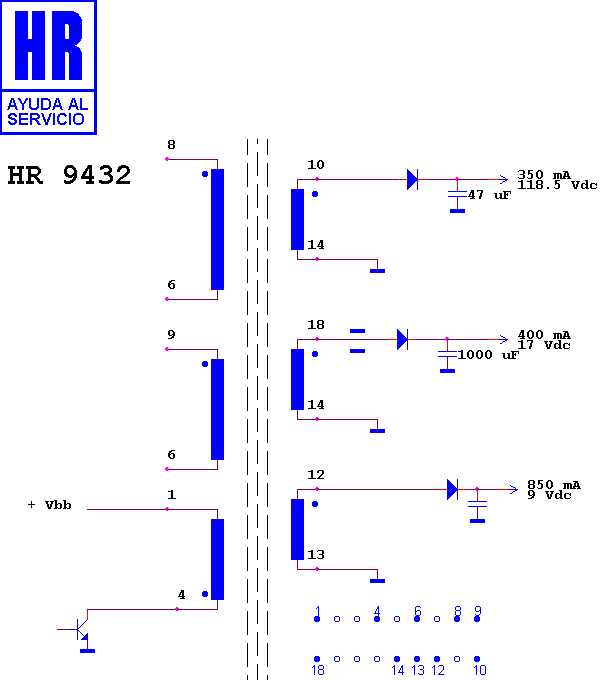

Schematic diagram for HR 9432 — schematic

Manufacturer equivalents (2)

093-01037/0.0 · 93-01037/0.0

Search this part in the full database
