HR 9431

type CH · family 261 · 5 windings · 184 g

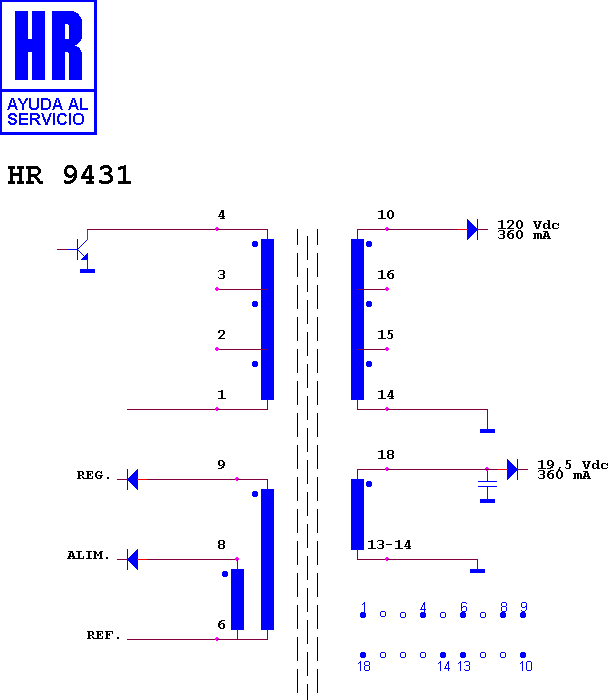

Schematic diagram for HR 9431 — schematic

Manufacturer equivalents (2)

093-01029/0.0 · 93-01029/0.0

Search this part in the full database
