HR 9415

type CH · family 260 · 4 windings · 247 g

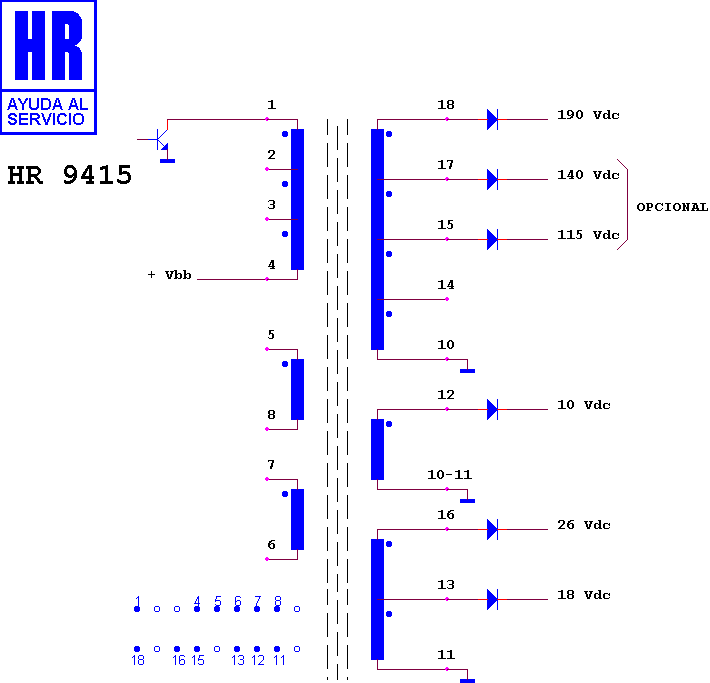

Schematic diagram for HR 9415 — schematic

Manufacturer equivalents (2)

45 000 2017 · 54 940 0013

Search this part in the full database
