HR 9414

type CH · family 260 · 5 windings · 246 g

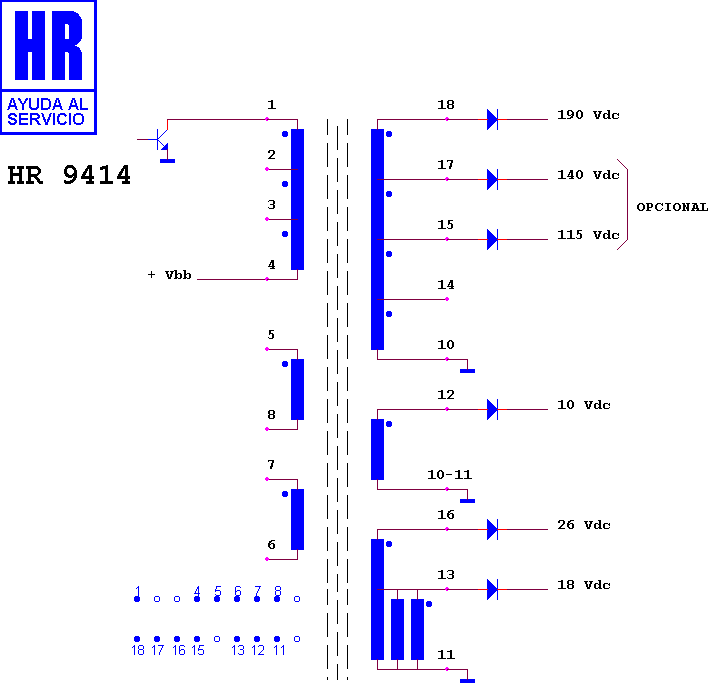

Schematic diagram for HR 9414
schematic

Manufacturer equivalents (6)

2082.0430 · 45 000 1006 · 490-10255 · 490-82038 · 490-82516 · ME/7079-00

Fitted to (1)

LOEWE / LOEWE-OPTA CHASIS C 8000
