HR 9408

type CH · family 260 · 7 windings · 250 g

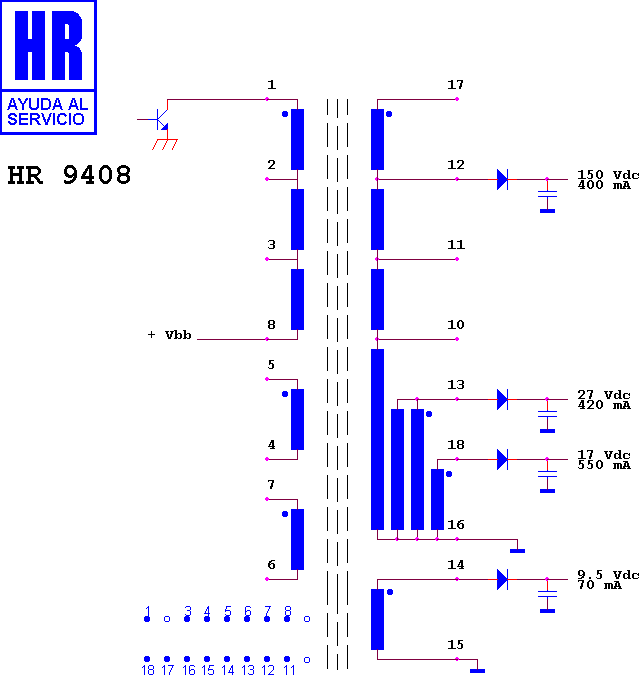

Schematic diagram for HR 9408
schematic

Manufacturer equivalents (6)

2082.0150 · 45 000 2039 · BV 42-50 · BV 52-50 · HR 9408 · ME/7073-00

Fitted to (4)

FORMENTI - ADMIRAL CHASIS F 5-02 · FORMENTI - ADMIRAL CHASIS F 6-02 · WESTINGHOUSE CHASIS F 5-02 · WESTINGHOUSE CHASIS F 6-02
