HR 9407

type CH · family 260 · 245 g

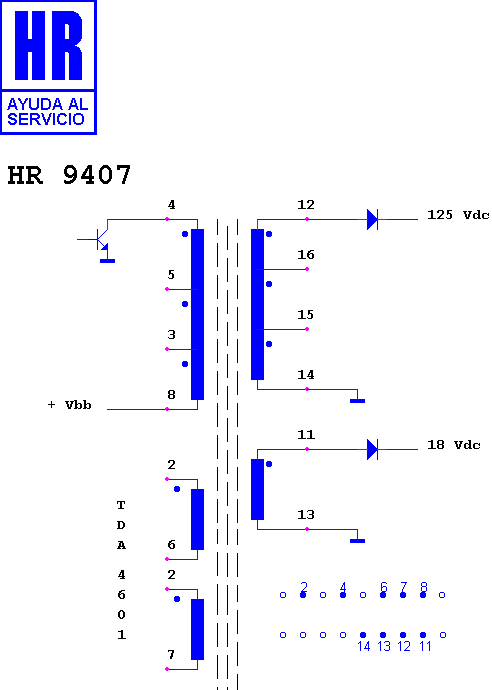

Schematic diagram for HR 9407 — schematic

Manufacturer equivalents (2)

2082.0071 · 62.2088.000

Fitted to (1)

SELECO 21 SM 427

Search this part in the full database
