HR 9403

type CH · family 260 · 5 windings · 244 g

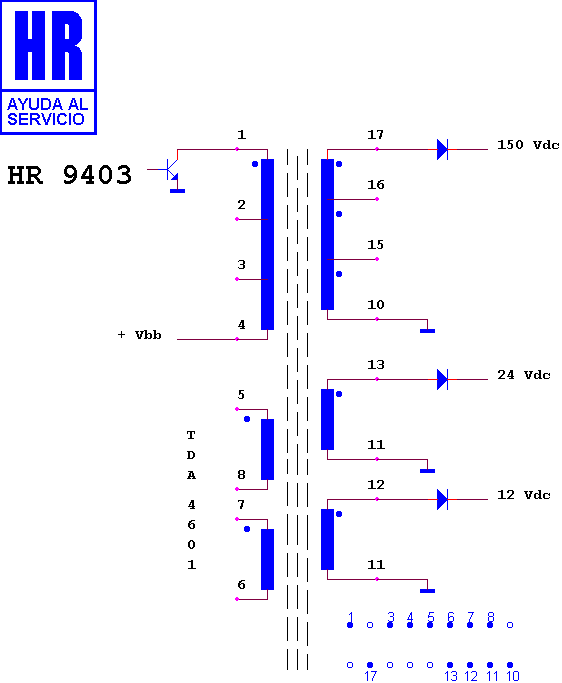

Schematic diagram for HR 9403 — schematic

Manufacturer equivalents (1)

17.862

Search this part in the full database
