HR 9360

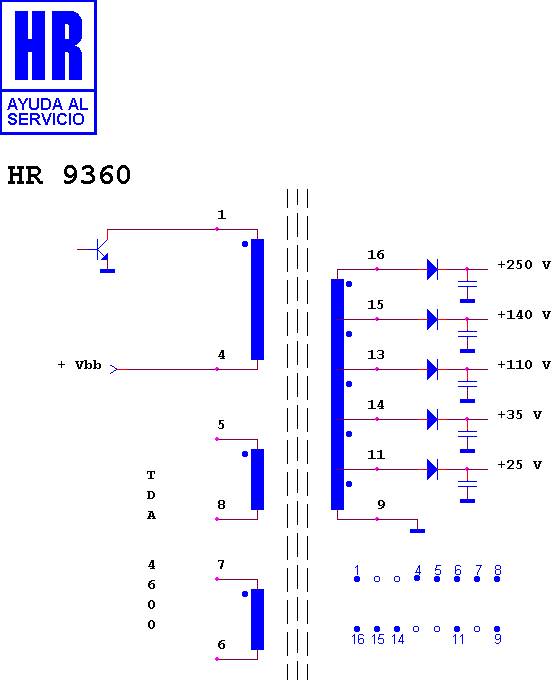

Schematic diagram for HR 9360 — schematic

Manufacturer equivalents (1)

45 000 1023

Search this part in the full database
