HR 9358

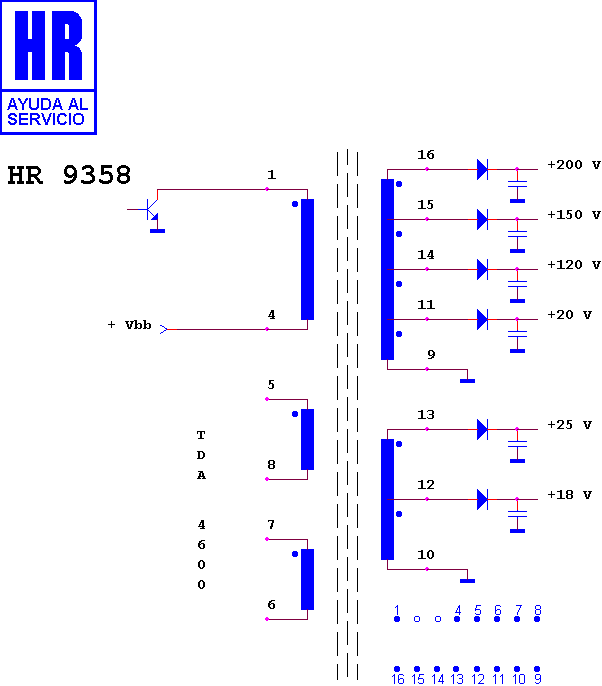

Schematic diagram for HR 9358 — schematic

Manufacturer equivalents (1)

TAC 134

Search this part in the full database

HR Diemen is a trademark of Efiter S.L. This archive is not affiliated with, endorsed by, or connected to Efiter or HR Diemen.
