HR 9357

4 windings

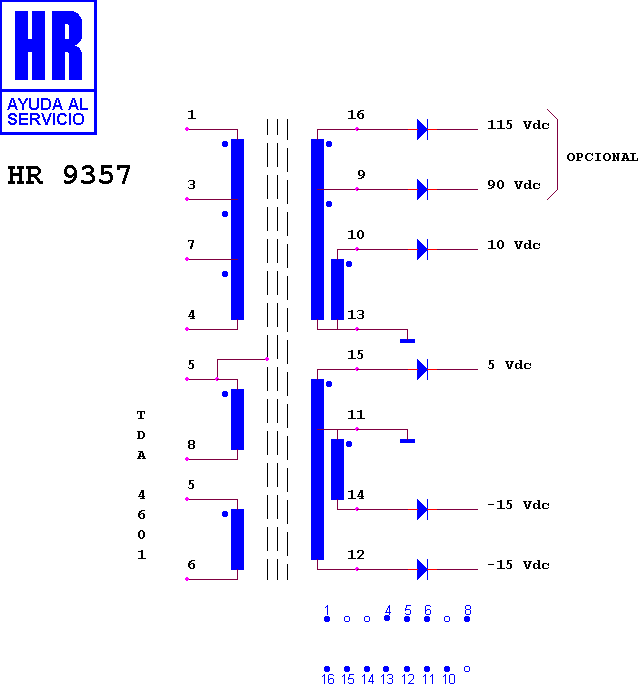

Schematic diagram for HR 9357 — schematic

Manufacturer equivalents (4)

210-0042-020 · 4011 07 0221 · 411 07 0221 · ME/7063-00

Search this part in the full database
