HR 9355

4 windings

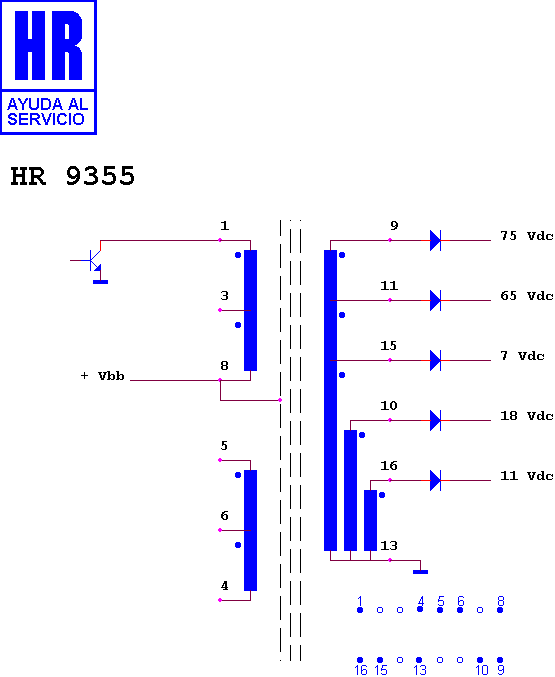

Schematic diagram for HR 9355 — schematic

Manufacturer equivalents (4)

4011 07 3002 · 411 07 3002 · BV 42-54 · ME/7074-00

Search this part in the full database
