HR 9347

5 windings

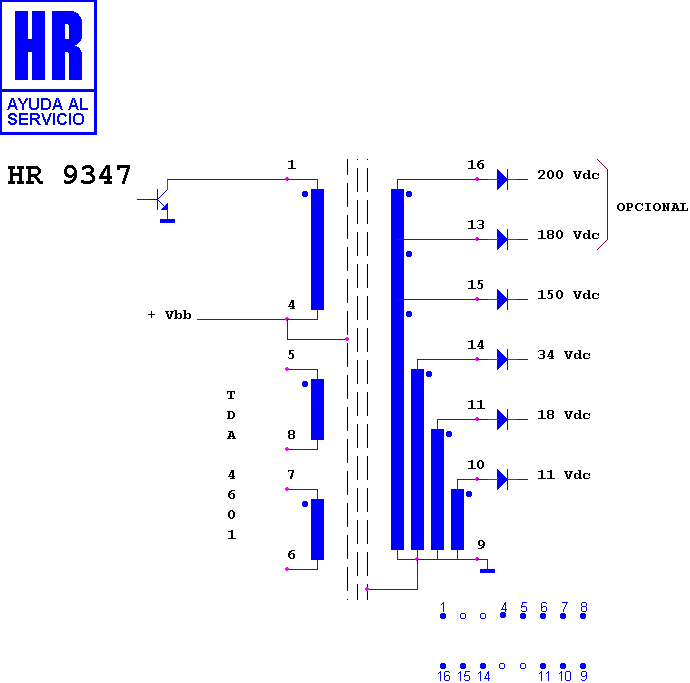

Schematic diagram for HR 9347 — schematic

Manufacturer equivalents (2)

29500.609.21 · ME/7088-00

Search this part in the full database
