HR 9346

4 windings

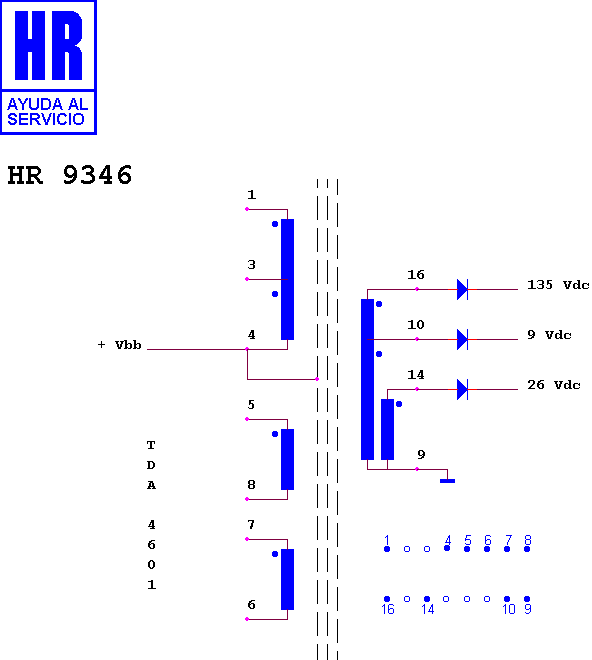

Schematic diagram for HR 9346 — schematic

Manufacturer equivalents (5)

29.6073 · 4011 07 0140 · 411 07 0140 · 45 000 2037 · ME/7012-00

Search this part in the full database
