HR 9342

5 windings

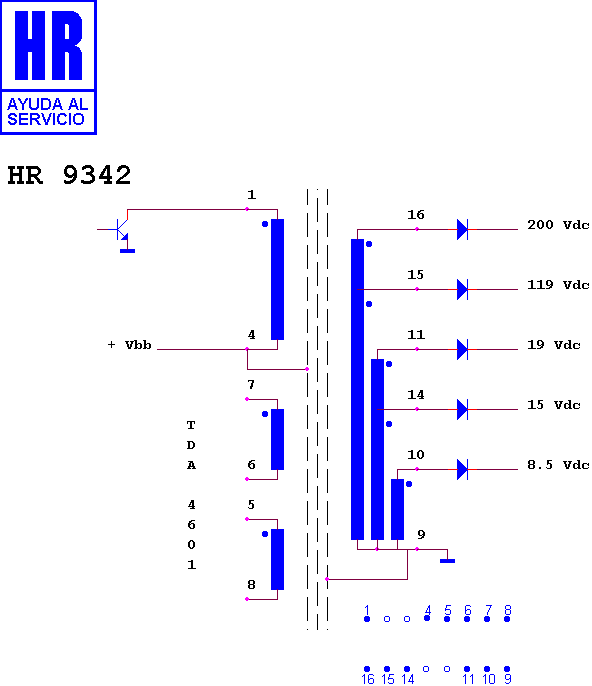

Schematic diagram for HR 9342 — schematic

Manufacturer equivalents (4)

4011 07 0117 · 411 07 0117 · 45 000 1009 · AZ 6-58000

Search this part in the full database
