HR 9341

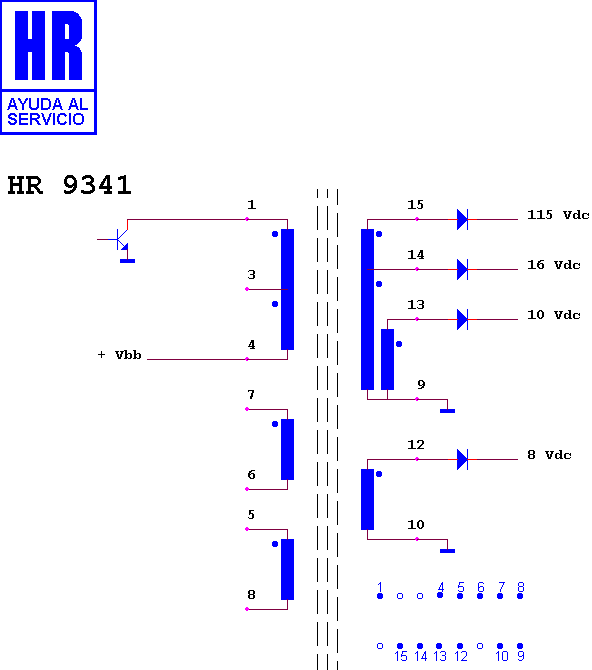

Schematic diagram for HR 9341 — schematic

Manufacturer equivalents (3)

2012.1283 · 28010200 · TAC 128

Fitted to (1)

HANTAREX CHASIS CT 900 SR PAL+AUD

Search this part in the full database

HR Diemen is a trademark of Efiter S.L. This archive is not affiliated with, endorsed by, or connected to Efiter or HR Diemen.
