HR 9334

4 windings

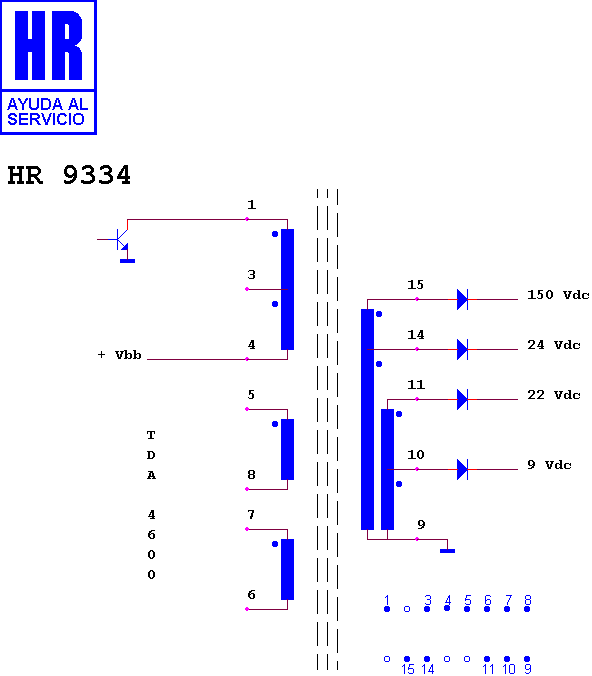

Schematic diagram for HR 9334 — schematic

Manufacturer equivalents (2)

AZ 1-56403 · AZ 1-56403 A

Search this part in the full database
