HR 9325

4 windings

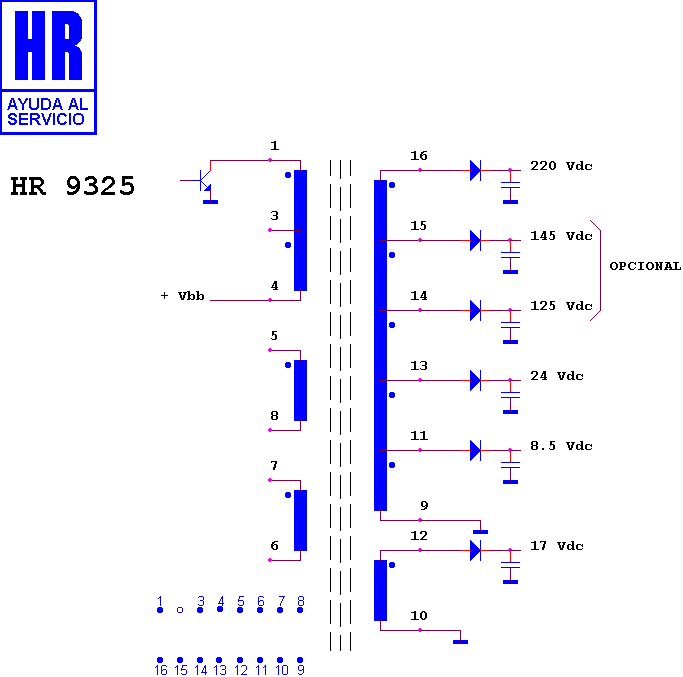

Schematic diagram for HR 9325 — schematic

Manufacturer equivalents (1)

SM 42/210

Search this part in the full database
