HR 9214

type CH · family 204 · 3 windings · 135 g

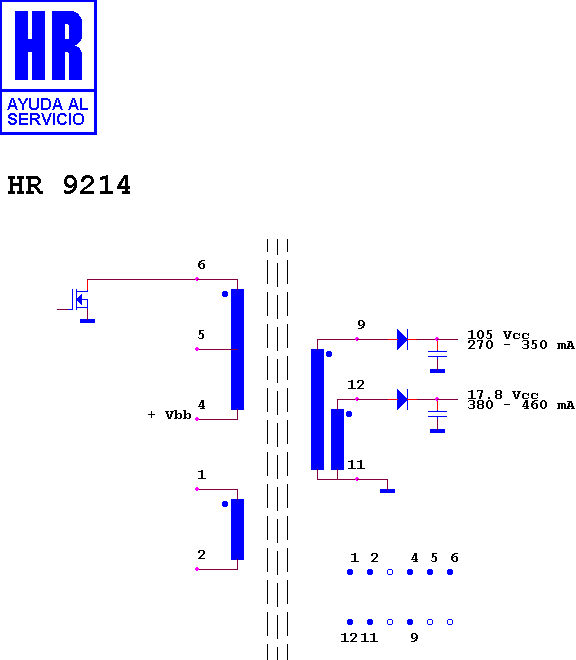

Schematic diagram for HR 9214
schematic

Manufacturer equivalents (4)

1-001-060 · 37.811 · 93799.00 · 93799.01

Fitted to (12)

ELBE 1410 · ELBE 1490 · ELBE CHASIS E 12 · ELBE CHASIS E 12-15 · ELBE CHASIS E 12-17 · ELBE CHASIS E 12-21 · ELBE CHASIS E 15 · ELBE TVC 1490 · ELBE TVC 1590 · ELBE TVC 1790 · ELBE TVC 2190 · ELBE TVC 2190 MD
