HR 9101

type CH · family 250 · 3 windings · 136 g

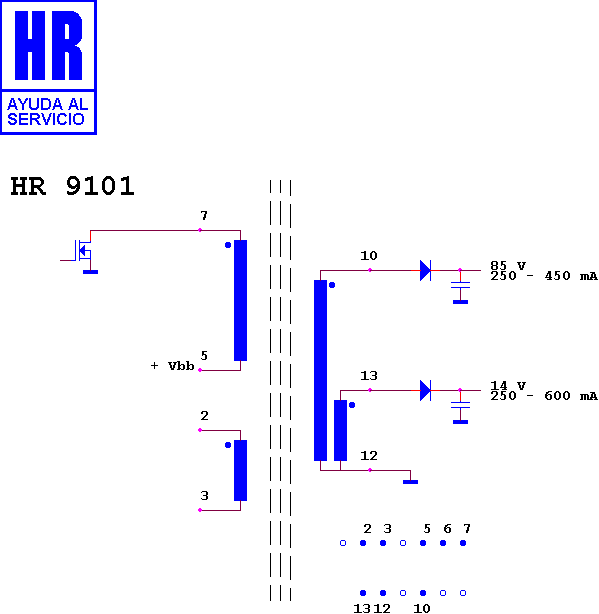

Schematic diagram for HR 9101
schematic

Manufacturer equivalents (7)

37.821 · 37.824 · 93301.00 · 93301.01 · 93301.02 · 93308.00 · 93308.01

Fitted to (5)

ELBE 1410 · ELBE 1411 · ELBE CHASIS E 15 · ELBE CHASIS E 15-2 · SELECO 14 SE 11
