HR 8971

type ST · family 1AP1 · 23.5 kV maximum anode voltage · 90° deflection · 3 windings · 347 g

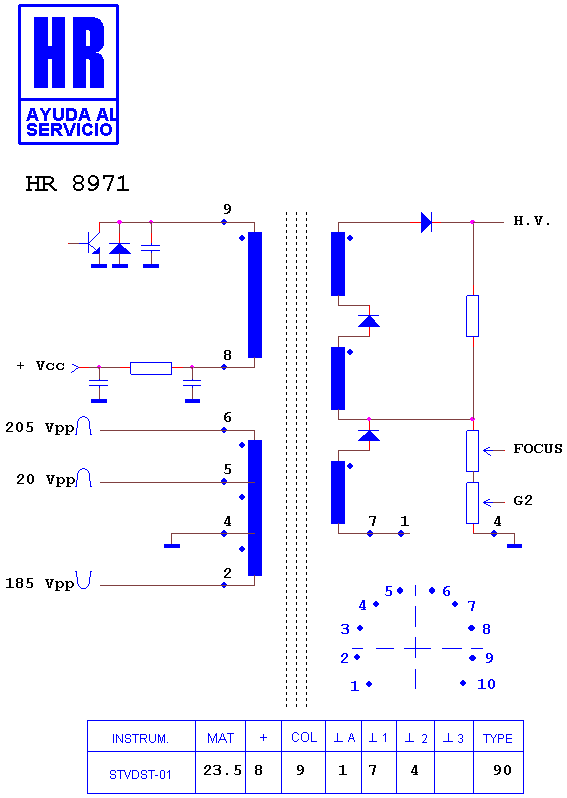

Schematic diagram for HR 8971
schematic (archived)

Manufacturer equivalents (6)

1352.3055 · 1352.3055 A · 29201.666.02 · 29201.666.0201 · 29221.666.02 · 29221.666.0201

Search this part in the full database
