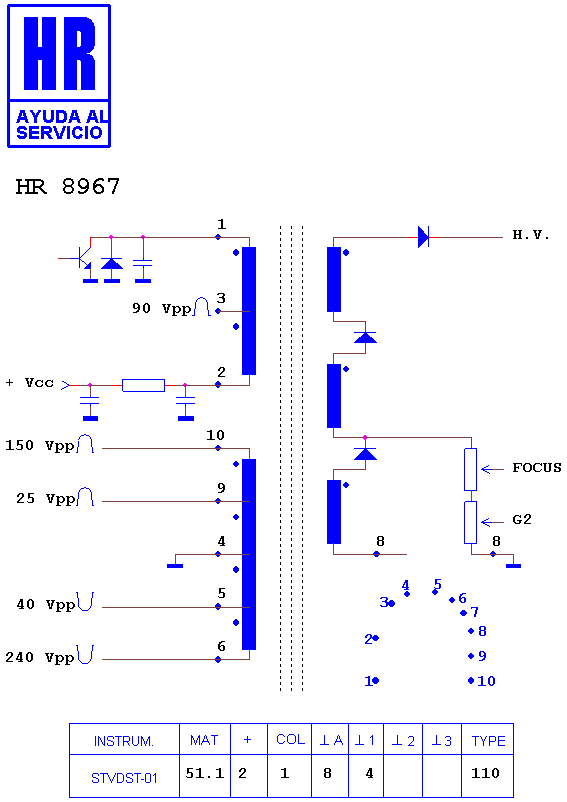

HR 8967

type ST · family 1YP · 51.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

Manufacturer equivalents (8)

105324.90 · 1302.0036 · 1302.0036 A · 23236650 · 40327-25 · FAT30769 · TFB 4142 AR · TFB 4142 BE

Notes

COD-031 IN THE HR TRANSFORMER; THE SCREEN CABLE IS RED.

Fitted to (10)

TOSHIBA 28 MW 7 DG · TOSHIBA 28 W 7 DD · TOSHIBA 28 WD 7 D · TOSHIBA 28 WD 7 DD · TOSHIBA 28 WD 96 G · TOSHIBA 28 WD 98 B · TOSHIBA 2988 DG · TOSHIBA 2998 DG · TOSHIBA 70 MW 8 S · TOSHIBA CHASIS C 8 SS

Search this part in the full database
