HR 8950

type ST · family 1VP2 · 33.9 kV maximum anode voltage · 110° deflection · 4 windings · 374 g

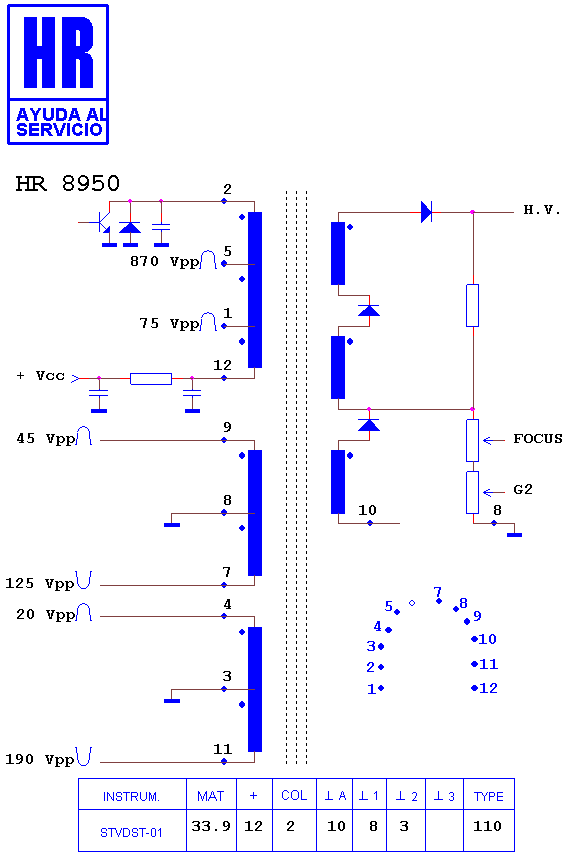

Schematic diagram for HR 8950
schematic (archived)

Manufacturer equivalents (4)

1362.5016 · 1362.5016 A · DS 36 · HR 8950

Fitted to (1)

MIVAR TVC 29 RF
