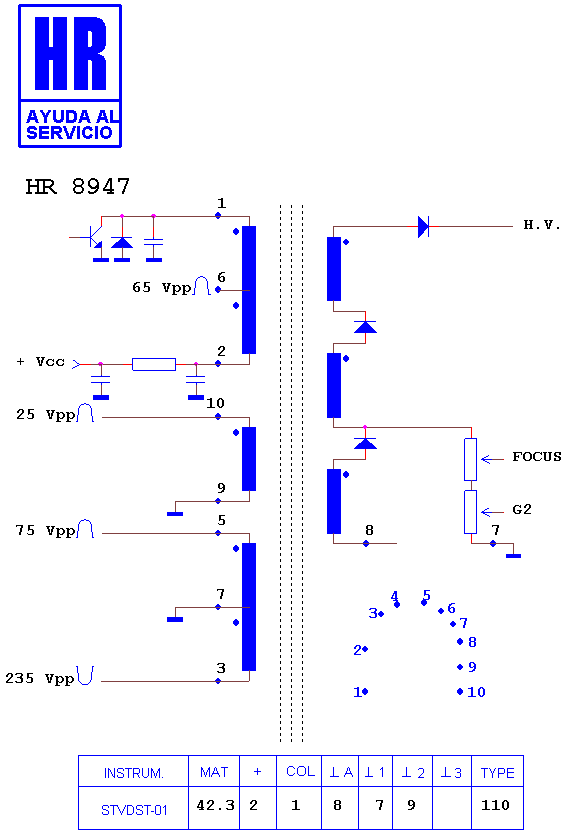

HR 8947

type ST · family 1YP · 42.3 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

Manufacturer equivalents (2)

334 P 19306 · 334 P 193060

Notes

COD-026 THE H.V.CABLE OUTPUT OF THE FLYBACK TRANSFORMER MUSTBE CONNECTED TO THE EXTERNAL H.V. CAPACITOR. COD-019 THE ORIGINAL SILICONE BUSHING AND CONECTOR MUST BE ADAPTED TO THE HR TRANSFORMER A.T. CABLE.

Fitted to (6)

MITSUBISHI CT 33 B 3 · MITSUBISHI CT 33 B 3 EDT · MITSUBISHI CT 33 B 3 ERT · MITSUBISHI CT 33 B 3 EST · MITSUBISHI CT 33 B 3 EST (Y) · MITSUBISHI CT 33 B 3 FST

Search this part in the full database
