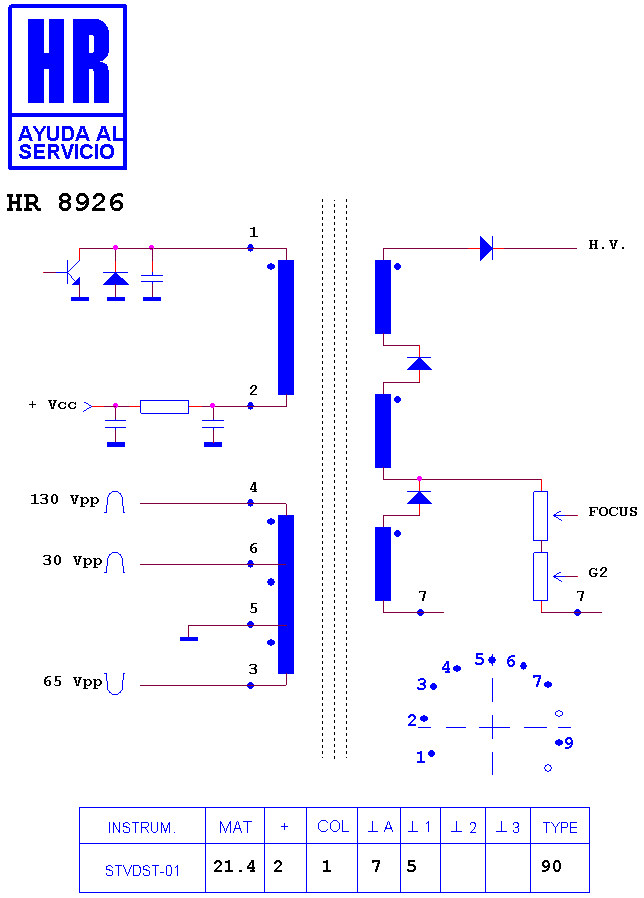

HR 8926

type ST · family 1XP1 · 21.4 kV maximum anode voltage · 90° deflection · 3 windings · 256 g

Manufacturer equivalents (11)

0094500331 · 0094500735 · BSC 23-1126 C · BSC23-0124 · BSC25-0203Y · BSC25-0221 · BSC25-0226 · BSC25-0228 · BSC25-0273C · BSC25-N0101F · JF0501-19142

Fitted to (2)

HISENSE TC 1420 F · HISENSE TC 1420 F NEW MODEL

Search this part in the full database
