HR 8869

type SM · family 1VS · 23.5 kV maximum anode voltage · H° deflection · 4 windings · 352 g

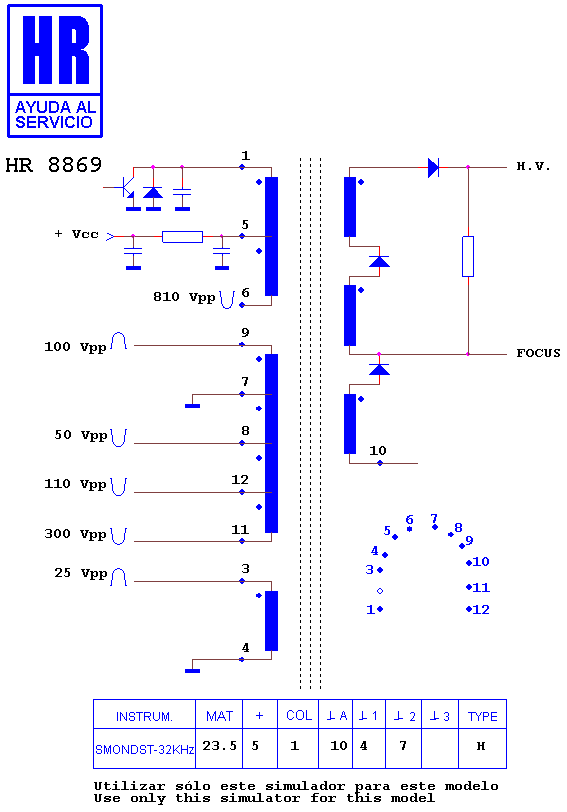

Schematic diagram for HR 8869
schematic (archived)

Manufacturer equivalents (5)

107488.20 · 1372.6020 · 1372.6020 A · 1372.6020 D · HR 8869

Fitted to (8)

THOMSON 44 JW 610 S · THOMSON 44 JW 611 S · THOMSON 44 TW 610 S · THOMSON 44TJW 611 S · THOMSON 52 JW 640 S · THOMSON 61 TW 610 A · THOMSON CHASIS ETC 221 · THOMSON CHASIS RPC 21

Search this part in the full database
