HR 8861

type ST · family 1VP2 · 51.1 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

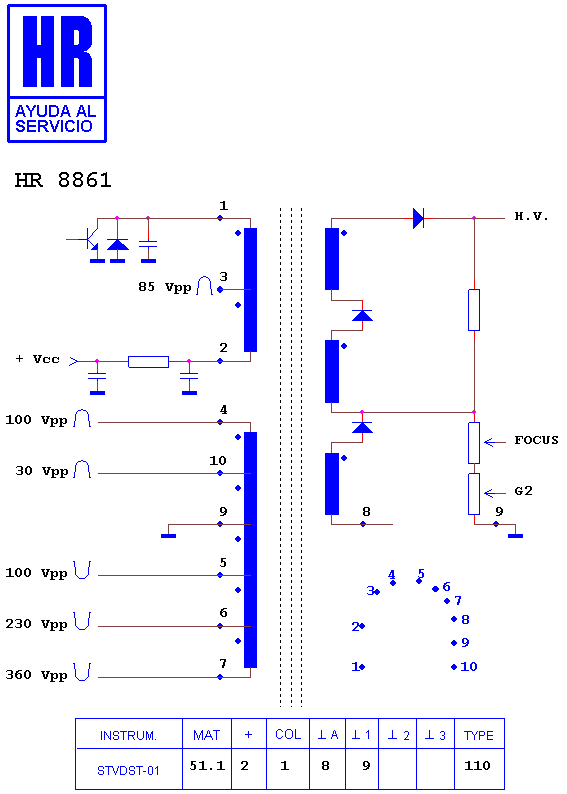

Schematic diagram for HR 8861
schematic (archived)

Manufacturer equivalents (6)

1372.0094 · 1372.0094 A · 1372.00942 · 1372.00942 A · 8504 922 096 · HR 8861

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80043 · HR 8889

Fitted to (2)

OVP - ORAVA CHASIS AK 37 · TESSLA CHASIS AK 37
