HR 8840

30.7 kV maximum anode voltage · L° deflection · 4 windings · 408 g

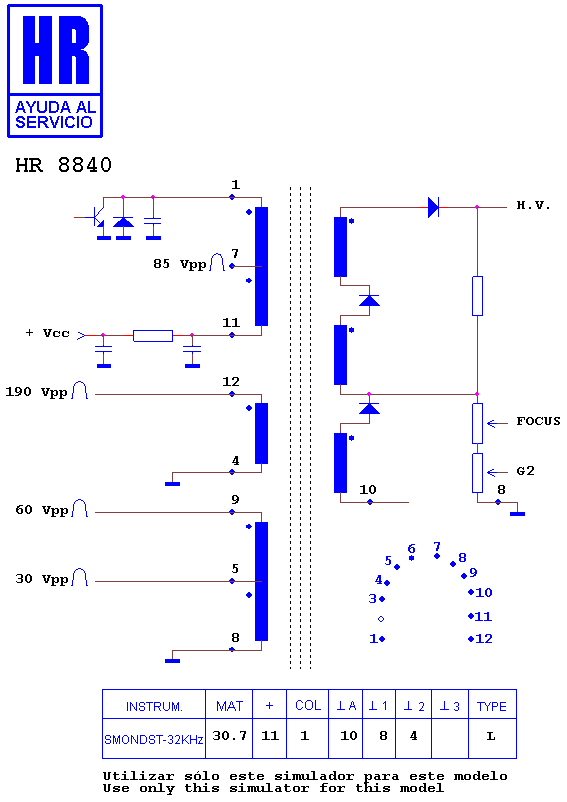

Schematic diagram for HR 8840
schematic (archived)

Manufacturer equivalents (10)

108552.90 · 1372.0082 · 1372.00822 · 1372.0082A · 1372.0082C · 13822791 · 312213822791 · 312813822791 · 40351A-13 · DS50

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 9494

Fitted to (1)

PHILIPS 29 PT 9007
