HR 8839

24.8 kV maximum anode voltage · 90° deflection · 4 windings · 400 g

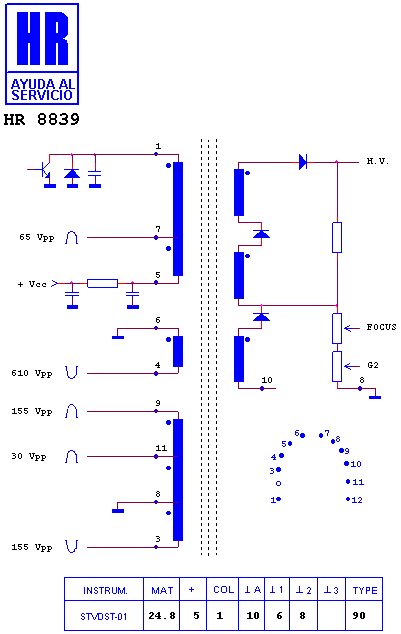

Schematic diagram for HR 8839
schematic (archived)

Manufacturer equivalents (7)

1372.0095 · 1372.0095A · 1372.0095E · 1372.0095F · 13822741 · 312813822741 · DS53

Fitted to (1)

MIVAR CHASIS 21 100 HZ

Search this part in the full database
