HR 8803

26.7 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

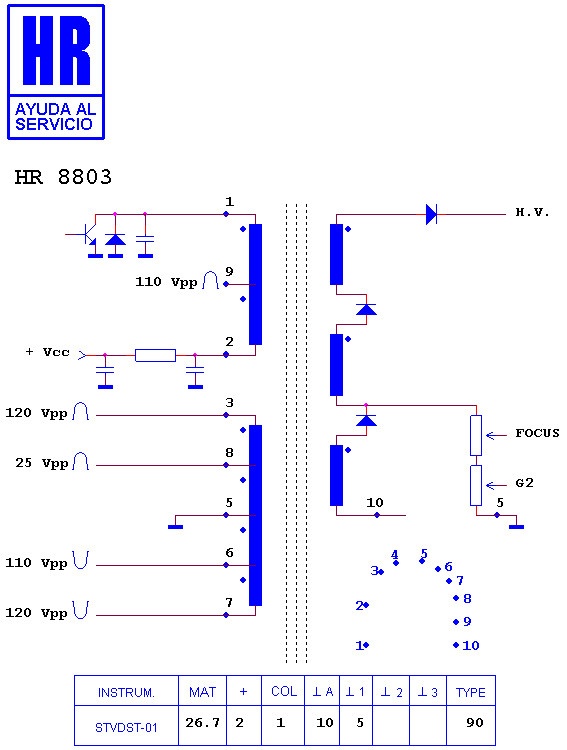

Schematic diagram for HR 8803
schematic (archived)

Manufacturer equivalents (5)

BSC21-2643S · F2053BM · F2053CE · RTRNF2053BMZZ · RTRNF2053CEZZ

Fitted to (6)

SHARP 21 HS 50 H · SHARP 21 HS 50 S · SHARP 21 HT 15 S · SHARP 70 ES 14 S · SHARP 70 ES 16 SN · SHARP CHASIS DA 100
