HR 8762

24.5 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

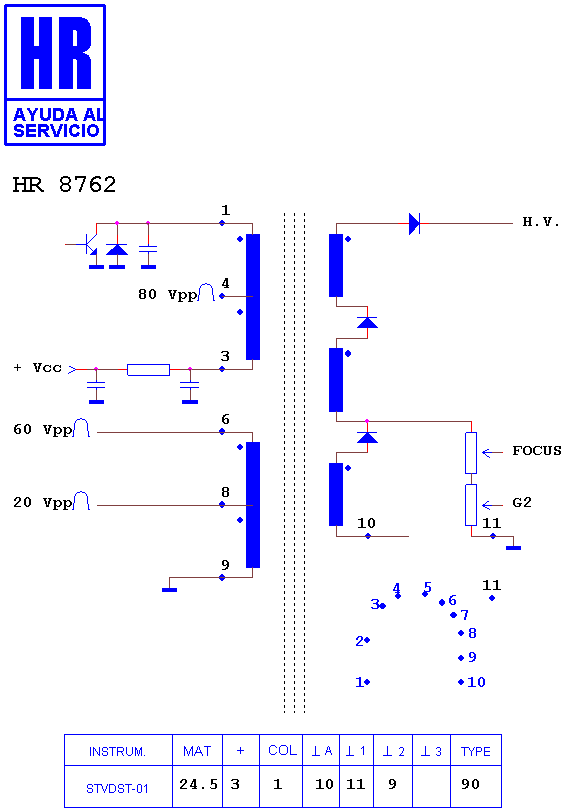

Schematic diagram for HR 8762
schematic (archived)

Manufacturer equivalents (5)

04090001998 · 08040171768 · 790016583 · F1998CE · RTRNF1998CEZZ

Fitted to (3)

SHARP 14 ST 57 · SHARP C 14 ST 57 · SHARP C 1457
