HR 8753

21.5 kV maximum anode voltage · L° deflection · 4 windings · 410 g

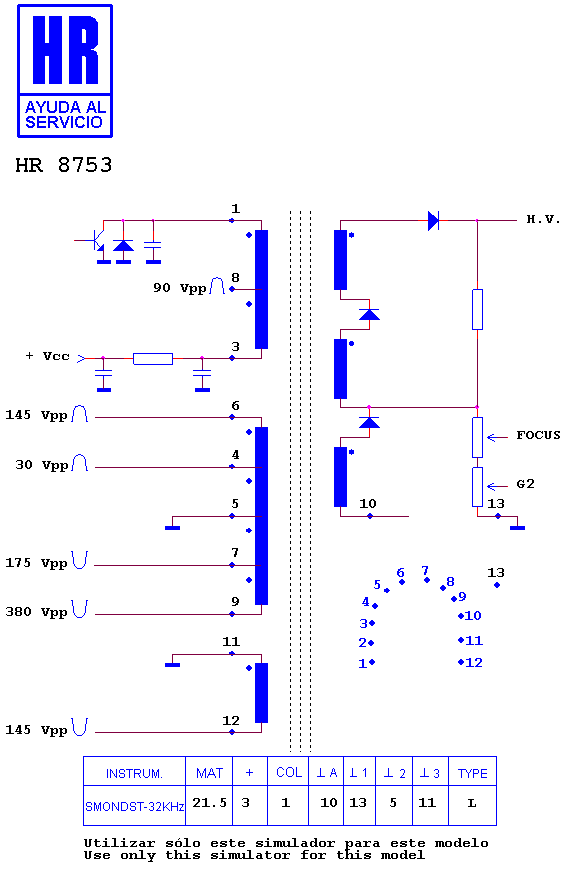

Schematic diagram for HR 8753
schematic (archived)

Manufacturer equivalents (13)

26831260 · 26831591 · 312226831260 · 312226831261 · 312226831591 · 31590 · 31591 · AT2092/31591 · AT2092/32 · AT2092/32S · AT2092/32SH · F2028BM · RTRNF2028BMZZ

Fitted to (3)

SHARP 70 AS 18 SN · SHARP 72 AS 18 SN · SHARP CHASIS BCTV-B
